S10-60/750-IR
商品類別：iDS Ensenso

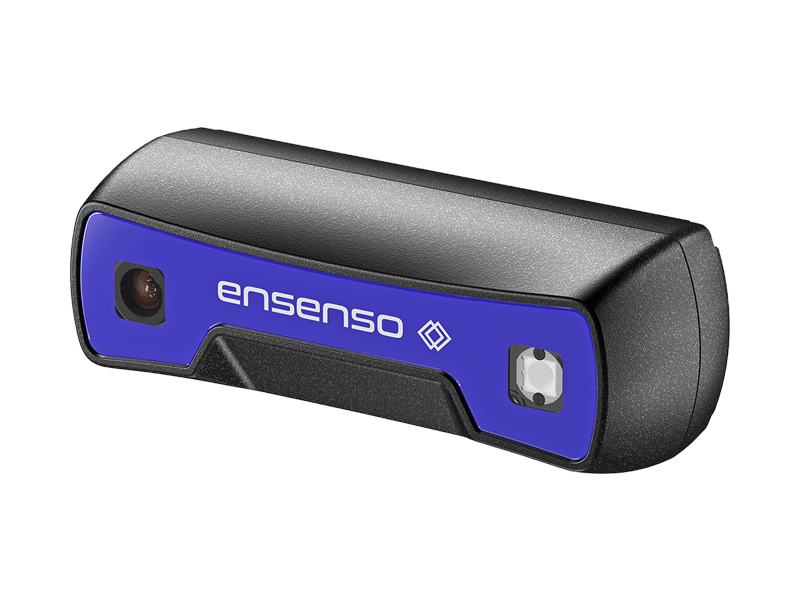

iDS Ensenso S系列 3D 立體視覺相機
鏡頭焦距 : 4mm
相對孔徑 : 1.8
收斂角 : 0.0°
最佳工作距離 : 750mm
工作距離 : 500mm ~ 3000mm
| Ensenso S Camera Data | |
| 3D System | Structured light using AI-based laser point pattern triangulation |
| Projection | Infrared LED laser (835nm), ca. 88,000 laser points |
| CMOS sensor | Global Shutter , 1.6MP |
| Focal length | 4mm |
| Working distance | 500 - 3000 mm |
| Opening angle | 60° (horizontal) × 50° (vertical) |
| Z Accuracy | 2.4mm at 1 m distance |
| Laser dot spacing | 7.1mm at 1 m distance |
| 3D point clouds per second | Up to 20Hz |
| Interfaces | M12 GigE data port, M8 port for power/trigger/flash |
| Power supply | 12V - 24V DC / PoE |
| Housing | Zinc |
| Protection class | IP65/67 |
| Dimensions | 130mm × 45mm × 44mm |
| Weight | 500g |
| Mounting | Backside 4 × M4 thread, rectangular 44 × 32 mm |
iDS Ensenso S10-60/750-IR 數據圖

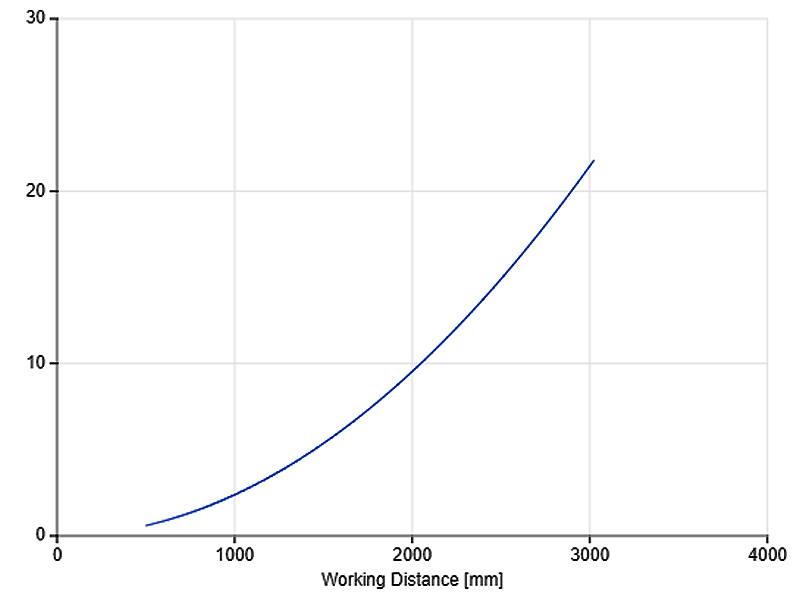

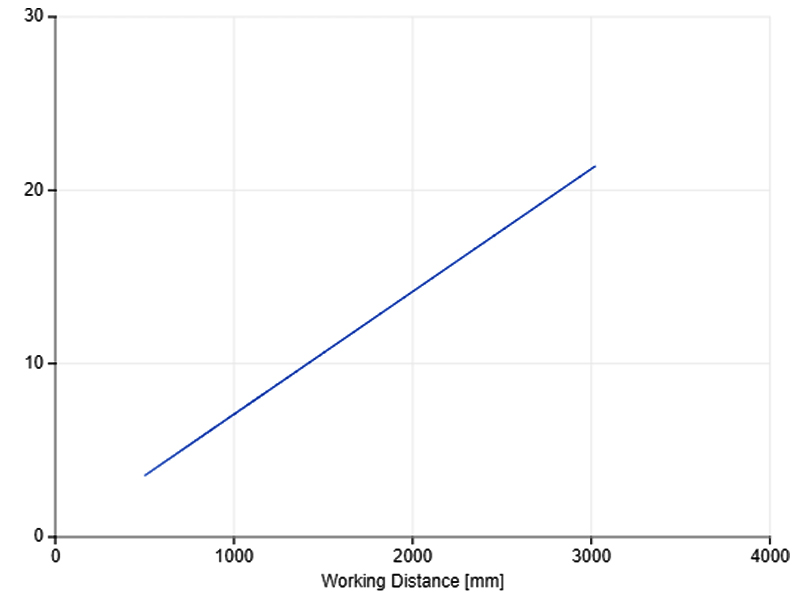

| Z-Accuracy (mm) | Laser DOT Spacing (mm) |
 |  |

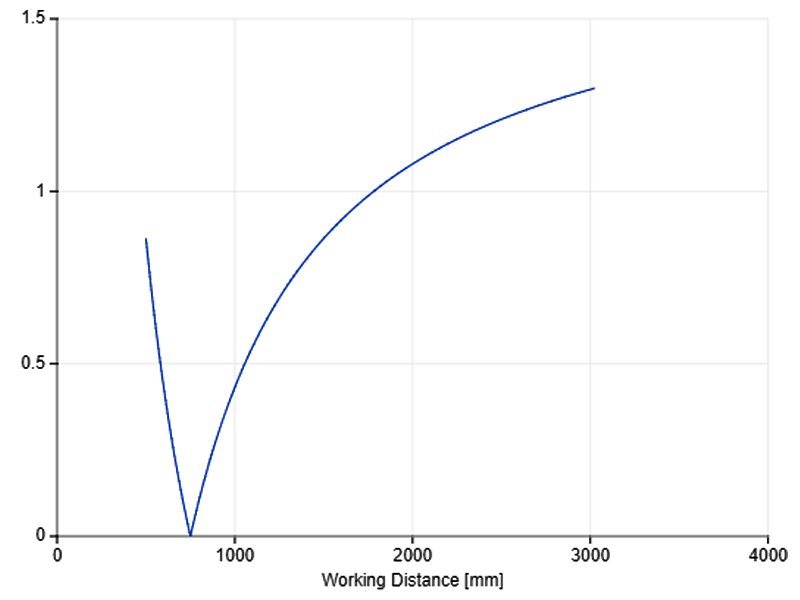

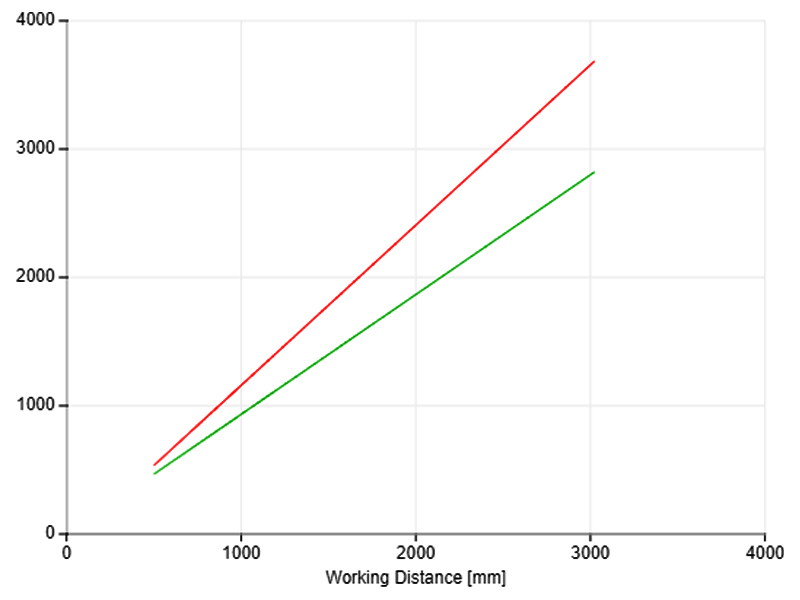

| View Field (mm) | Optics Blur (px) |
 |  |
iDS Ensenso S10-60/750-IR 數據表
| Distance (mm) | Z-Accuracy (mm) | Laser Dot Spacing (mm) | View Field X (mm) | View Field Y (mm) | Optics Blur (px) |
| 500 | 0.596 | 3.539 | 534.29 | 466.55 | 0.863 |
| 600 | 0.858 | 4.246 | 659.14 | 559.87 | 0.432 |
| 700 | 1.168 | 4.954 | 784.00 | 653.18 | 0.123 |
| 800 | 1.526 | 5.662 | 908.86 | 746.49 | 0.108 |
| 900 | 1.931 | 6.370 | 1033.72 | 839.80 | 0.288 |
| 1000 | 2.385 | 7.078 | 1158.57 | 933.11 | 0.432 |
| 1100 | 2.885 | 7.785 | 1283.43 | 1026.42 | 0.549 |
| 1200 | 3.434 | 8.493 | 1408.29 | 1119.73 | 0.648 |
| 1300 | 4.030 | 9.201 | 1533.15 | 1213.04 | 0.731 |
| 1400 | 4.674 | 9.909 | 1658.00 | 1306.35 | 0.802 |
| 1500 | 5.365 | 10.617 | 1782.86 | 1399.66 | 0.863 |
| 1600 | 6.104 | 11.324 | 1907.72 | 1492.97 | 0.917 |
| 1700 | 6.891 | 12.032 | 2032.58 | 1586.28 | 0.965 |
| 1800 | 7.726 | 12.740 | 2157.43 | 1679.60 | 1.007 |
| 1900 | 8.608 | 13.448 | 2282.29 | 1772.91 | 1.045 |
| 2000 | 9.538 | 14.156 | 2407.15 | 1866.22 | 1.079 |
| 2100 | 10.516 | 14.863 | 2532.00 | 1959.53 | 1.110 |
| 2200 | 11.541 | 15.571 | 2656.86 | 2052.84 | 1.138 |
| 2300 | 12.614 | 16.279 | 2781.72 | 2146.15 | 1.164 |
| 2400 | 13.735 | 16.987 | 2906.58 | 2239.46 | 1.187 |
| 2500 | 14.903 | 17.695 | 3031.43 | 2332.77 | 1.209 |
| 2600 | 16.119 | 18.403 | 3156.29 | 2426.08 | 1.229 |
| 2700 | 17.383 | 19.110 | 3281.15 | 2519.39 | 1.247 |
| 2800 | 18.695 | 19.818 | 3406.01 | 2612.70 | 1.264 |
| 2900 | 20.054 | 20.526 | 3530.86 | 2706.01 | 1.280 |
| 3000 | 21.461 | 21.234 | 3655.72 | 2799.33 | 1.295 |
