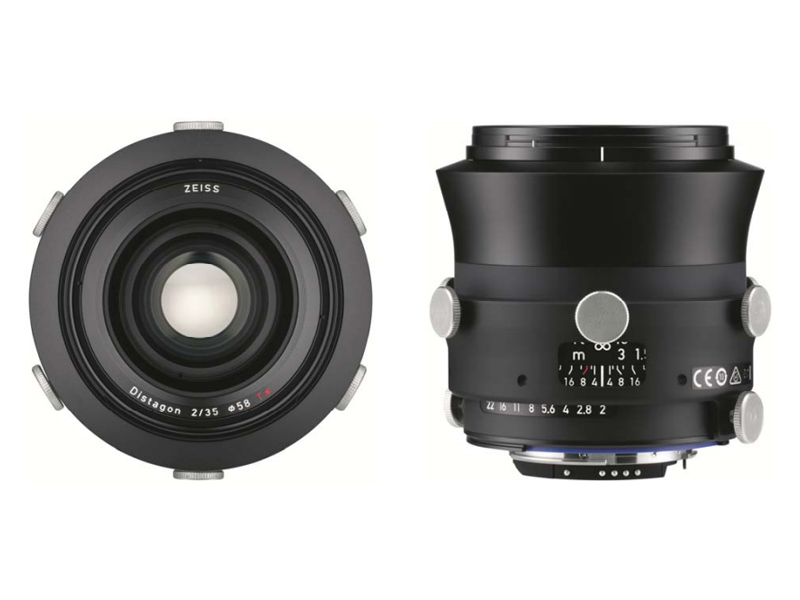

ZEISS Interlock 2/35
商品類(lèi)別：ZEISS 機(jī)器視覺(jué)工業(yè)鏡頭
ZEISS Interlock Lenses - Professional lenses with optimized locking screws
Focal Length : 35mm
Max. Aperture : 2.0
Min. Free Working Distance : 180mm
Filter Thread : M58 × 0.75
Camera Mount : F-Mount , M42
Features
● Fast f/2.0 aperture
● Precise manual focusing
● Robust full-metal construction
● Continuous aperture setting or click stop
● For industrial cameras up to sensor sizes of 24×36 mm or 41 mm line sensors
● High optical performance both at infinity and at 1:5.3 scale
● Features special screws to fix focus and aperture settings even in rough situations
Optical data
| Focal length | 35mm |
| Aperture range | f/2 – f/22 (1/ 2 stop intervals or continuous) |
| Number of elements / groups | 9 / 7 |
| Min. working distance (object to sensor) | 300mm (0.98 ft.) – ∞ |
| Min. free working distance | 180mm (0.59 ft.) – ∞ |
| Angular field* (diag. / horiz. / vert.) | 62 / 53 / 37° |
| Max. diameter of image field | 43mm (1.7") |
| Flange focal length | F-Moun t : 46.5mm (1.8") ; M42-Mount : 45.5mm |
| Coverage at close range* | area : 127 × 190mm (5.0 × 7.5") ; line : 217mm (8.5”) |
| Image ratio at close range | 1:5.3 |
| Filter-thread | M58 × 0.75 |
| Weight | 716g (1.6 lbs.) |
| Camera mount | F bayonet , M42 |
* referring to 35mm format

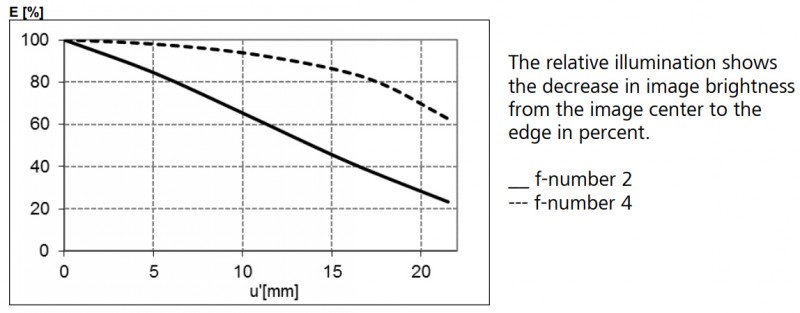

Relative Illuminance*

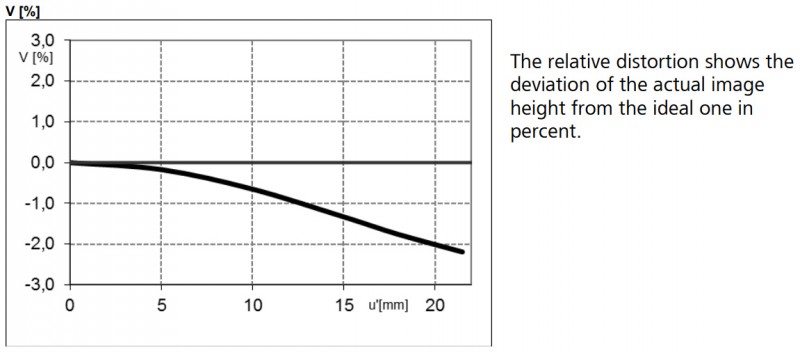

Relative Distortion*
* Data for infinite focus setting

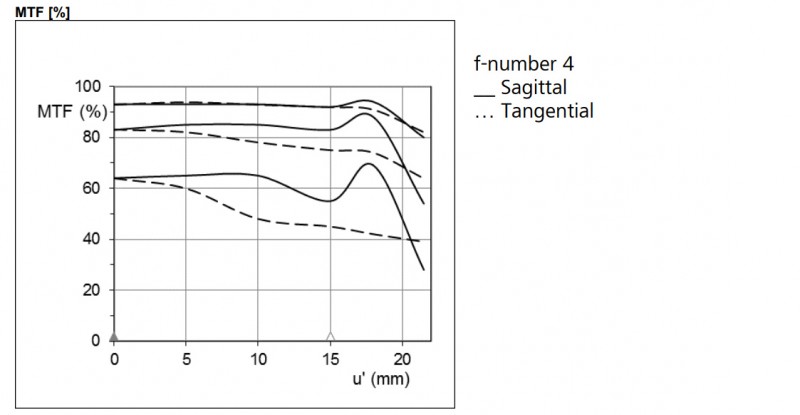

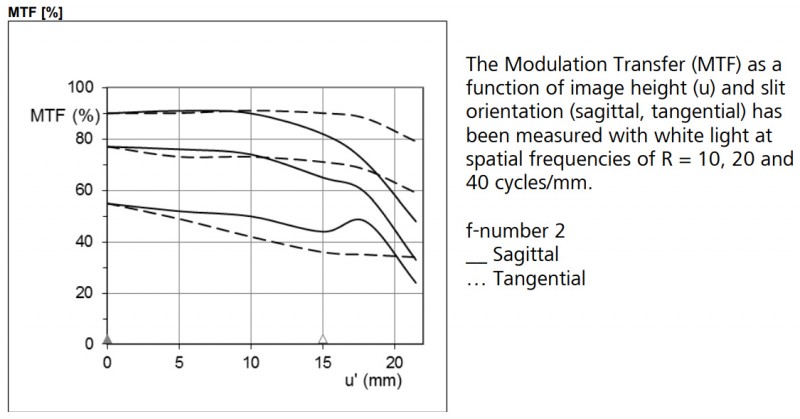

MTF Charts*
* Data for infinite focus setting

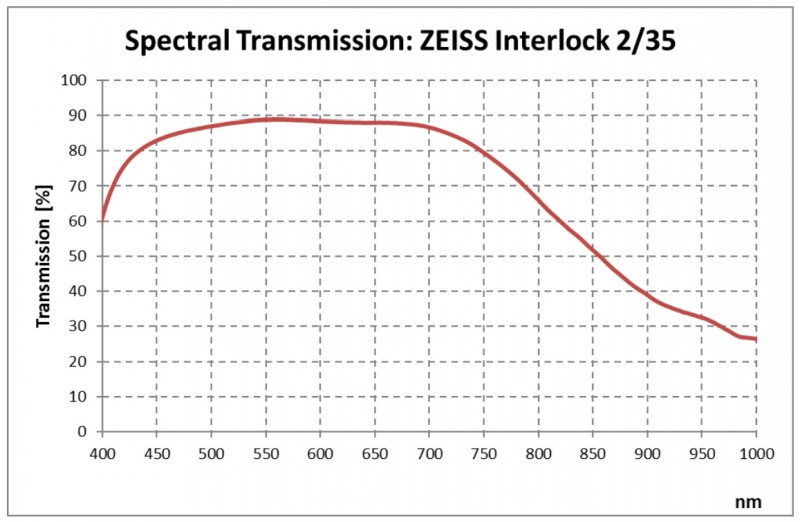

Spectral Transmission
