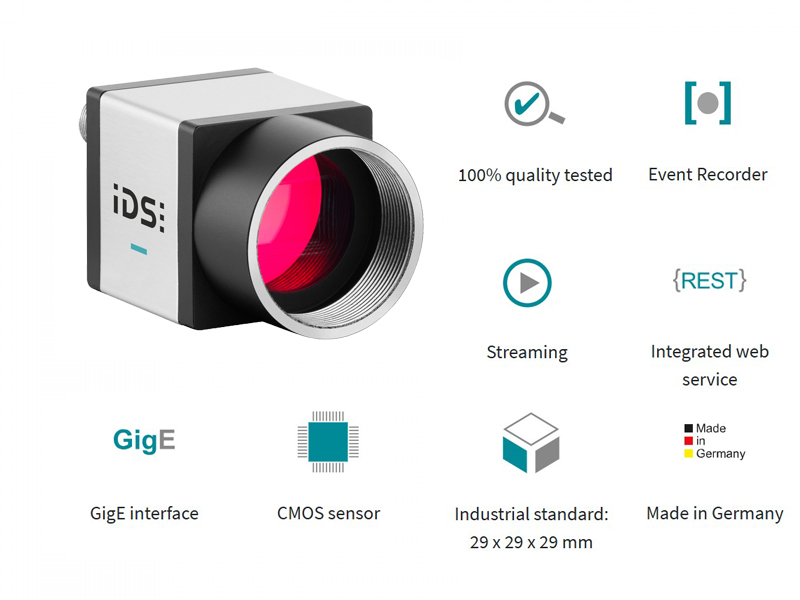

GL-54J0SCP-C-HQ
商品類別：iDS 工業監控相機
專為監控設計，除了MJPEG、H264串流外，還可將事件記錄到相機記憶體中。並配備 Ambarella 的專用SoC，透過 ISP 和自動功能確保出色的影像品質
8.39MP Sony Starvis 2系列 IMX678 Rolling Shutter Sensor
1/1.8 inch , Pixel Size 2.00μm，可獲取更清晰的影像
具高動態範圍HDR，適合用於環境光線較暗的環境
除監控應用，也非常適合工業應用，可用於機器內部，監控零件或磨損情形
全封閉外殼，尺寸僅為29 x 29 x 29毫米
| Sensor | |
| Sensor Type | CMOS Color |
| Shutter | Rolling Shutter |
| Sensor Characteristic | Linear |
| Readout Mode | - |
| Pixel Class | 8 MP |
| Resolution | 3856 × 2176 Pixel (8.39 Mpix) |
| Aspect Ratio | 16 : 9 |
| ADC | 12 bit |
| Color Depth (camera) | |
| Optical Sensor Class | 1/1.8" |
| Optical Size | 7.712mm × 4.352mm |
| Optical Sensor Diagonal | 8.86m (1/1.81") |
| Pixel Size | 2um |
| Manufacturer | Sony |
| Sensor Model | IMX678-AAQR1-C |
| Model | |
| Frame Rate Freerun Mode | - |
| Power Consumption | 3.3W - 4.1W |
| Ambient Conditions | |
| The temperature values given below refer to the outer device temperature of the camera housing | |
| Device Temperature During Operation | 0°C ~ 55°C / 32°F ~ 131°F |
| Device Temperature During Storage | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity (relative , non-condensing) | |
| Connectors | |
| Interface Connector | GigE RJ45 , screwable |
| I/O Connector | 8 Pin Hirose Connector |
| Power Supply | 12V - 24V |
| Design | |
| Lens Mount | C-Mount |
| IP Code | IP30 |
| Dimensions H/W/L | 29.0mm × 29.0mm × 29.0mm |
| Mass | 47g |
