N31-810-16
商品類別：iDS Ensenso

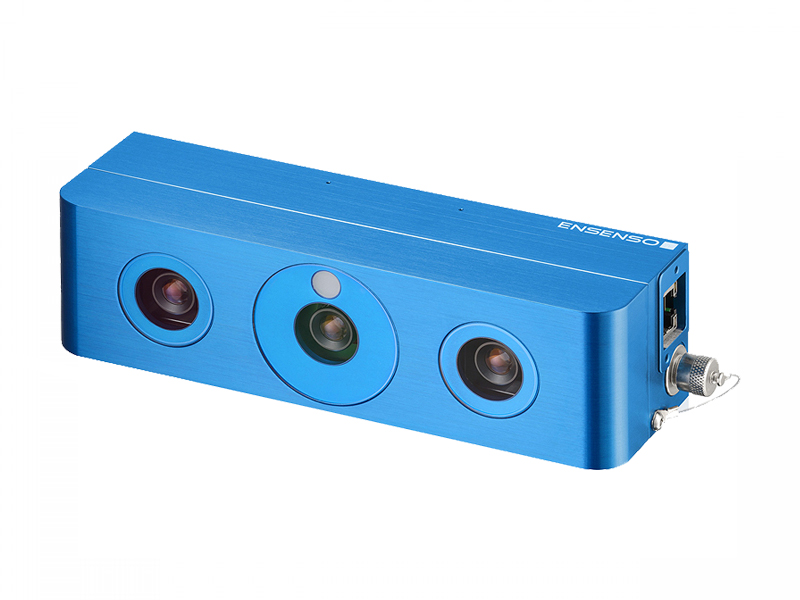

IDS Ensenso N31系列 3D 立體視覺相機
Lenses - Focal Length : 8mm
Lenses - Relative Aperture : 1.6
Vergence Angle : 10.0°
Focus Distance : 250mm
Operating Distance : 240mm ~ 260mm
| Optics N31-810-16 | |
| Lenses - Focal Length | 8mm |
| Lenses - Relative Aperture | 1.6 |
| Vergence Angle | 10.0° |
| Baseline (Pupillary Distance) | 100mm |
Focus Distance | 250mm |
Operating Distance | 240 ~ 260 (mm) |
| Calibration Plate - Dimensions | 100 × 100 × 1 (mm) |
| Calibration Plate - Grid Dots / Grid Spacing | 15 × 15 / 12mm |
| Specifications N31 Series | |
| Dimensions | 175 × 50 × 52 (mm) |
| Weight | 650g |
| Resolution | 1936 × 1216 (2.3 MP) |
| Frames per Second | 10 (2.3 MP) , 30 (2 × Binning) |
| Interface | Gigabit Ethernet |
| Inputs | 1 × Trigger |
| Outputs | 1 × Flash / GPIO |
| Input Voltage | 12V ~ 24V DC / PoE |
| Housing - Projector | Aluminium , IP65 / 67 |
| Temperature - Operation | 0°C ~ 40°C |
| Temperature - Storage | 0°C ~ 50°C |
| Vibration Resistance | 30 ~ 500 Hz 10g (sine) |
| Shock Resistance | 80g , 1.9ms / 25g , 6ms (half sine) |
| Software | Ensenso SDK |
IDS Ensenso N31-810-16 數據圖
| Z-Accuracy (mm) | XY Pixel Size (mm) |
 |  |
| View Field (mm) | Optics Blur (px) |
 |  |
IDS Ensenso N31-810-16 數據表
| Distance (mm) | Z-Accuracy (mm) | XY Pixel Size (mm) | View Field X (mm) | View Field Y (mm) | Optics Blur (px) |
| 250 | 0.066 | 0.106 | 198.44 | 129.20 | 1.610 |
| 260 | 0.072 | 0.111 | 202.37 | 134.37 | 2.378 |
