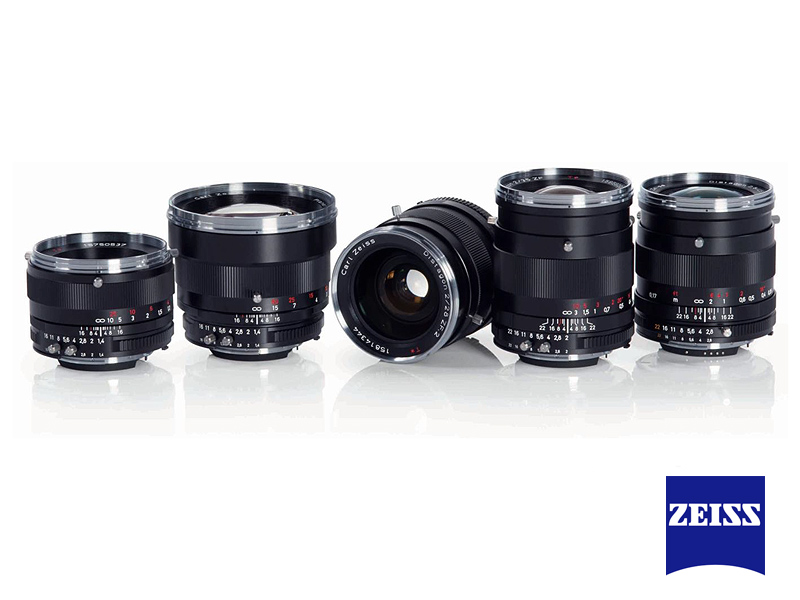

ZEISS Classic Lenses
商品類別：ZEISS 機器視覺工業鏡頭
出色的圖像質量
用於鎖定對焦和光圈值的精密鎖固螺絲
全金屬外殼與對焦環
精準手動對焦
■ Mount : F-mount ; M42×1-mount (for 45.5mm FFD)
■ Sensor Format : 線掃描最大支援 43mm (4K~8K) , 面掃描最大支援 36×24mm
■ Resolution : 解析度 3.4um (對比度30%)
| Product | Focal length | Aperture | Min. object distance* | Max. magnification ratio | Min. working distance* | Filter threas |
| Distagon T* 2.8/25 | 25mm | 2.8 - 22 | 170mm | 1 : 2.3 | 60mm | M58 × 0.75 |
| Distagon T* 2/28 | 28mm | 2 - 22 | 240mm | 1 : 4.7 | 120mm | M58 × 0.75 |
| Distagon T* 2/35 | 35mm | 2 - 22 | 300mm | 1 : 5.3 | 180mm | M58 × 0.75 |
| Planar T* 1.4/50 | 50mm | 1.4 - 16 | 450mm | 1 : 6.7 | 351mm | M58 × 0.75 |
| Planar T* 1.4/85 | 85mm | 1.4 - 16 | 1000mm | 1 : 10.0 | 883mm | M72 × 0.75 |
