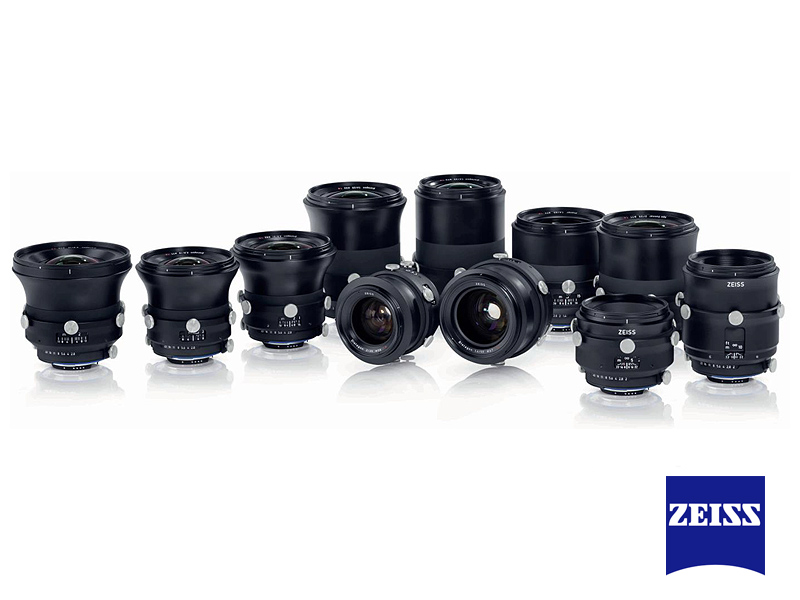

ZEISS Interlock Lenses
商品類別：ZEISS 機器視覺工業鏡頭
Professional lenses with robust locking screws
出色的圖像質量
全金屬外殼和對焦環
用於鎖定對焦和光圈值的精密鎖固螺絲
高分辨率 / 高解析相機鏡頭
透過抑制雜散光實現精確高對比度
■ Mount : F-mount ; M42×1-mount (for 45.5mm FFD)
■ Sensor Format : 線掃描最大支援 43mm (4K~8K)，面掃描最大支援 36×24mm (4200萬畫素)
■ Resolution : 解析度 2.8um (對比度30%)
| Product | Focal length | Aperture | Min. object distance* | Max. magnification ratio | Min. working distance* | Filter threas |
| Interlock 2.8/15 | 15mm | 2.8 - 22 | 250mm | 1 : 9.0 | 90mm | M95 × 1.0 |
| Interlock 2.8/18 | 18mm | 2.8 - 22 | 250mm | 1 : 7.4 | 120mm | M77 × 0.75 |
| Interlock 2.8/21 | 21mm | 2.8 - 22 | 220mm | 1 : 5.0 | 90mm | M82 × 0.75 |
| Interlock 1.4/25 | 25mm | 1.4 - 16 | 252mm | 1 : 4.6 | 93mm | M82 × 0.75 |
| Interlock 1.4/35 | 35mm | 1.4 - 16 | 300mm | 1 : 4.6 | 140mm | M72 × 0.75 |
| Interlock 2/35 | 35mm | 2 - 22 | 300mm | 1 : 5.3 | 180mm | M58 × 0.75 |
| Interlock 1.4/50 | 50mm | 1.4 - 16 | 450mm | 1 : 6.7 | 340mm | M67 × 0.75 |
| Interlock 2/50 | 50mm | 2 - 22 | 240mm | 1 : 2.0 | 100mm | M67 × 0.75 |
| Interlock 1.4/85 | 85mm | 1.4 - 16 | 800mm | 1 : 8.3 | 650mm | M77 × 0.75 |
| Interlock 2/100 | 100mm | 2 - 22 | 440mm | 1 : 2.0 | 250mm | M67 × 0.75 |
| Interlock 2/135 | 135mm | 2 - 22 | 800mm | 1 : 4.0 | 620mm | M77 × 0.75 |
